Product Description

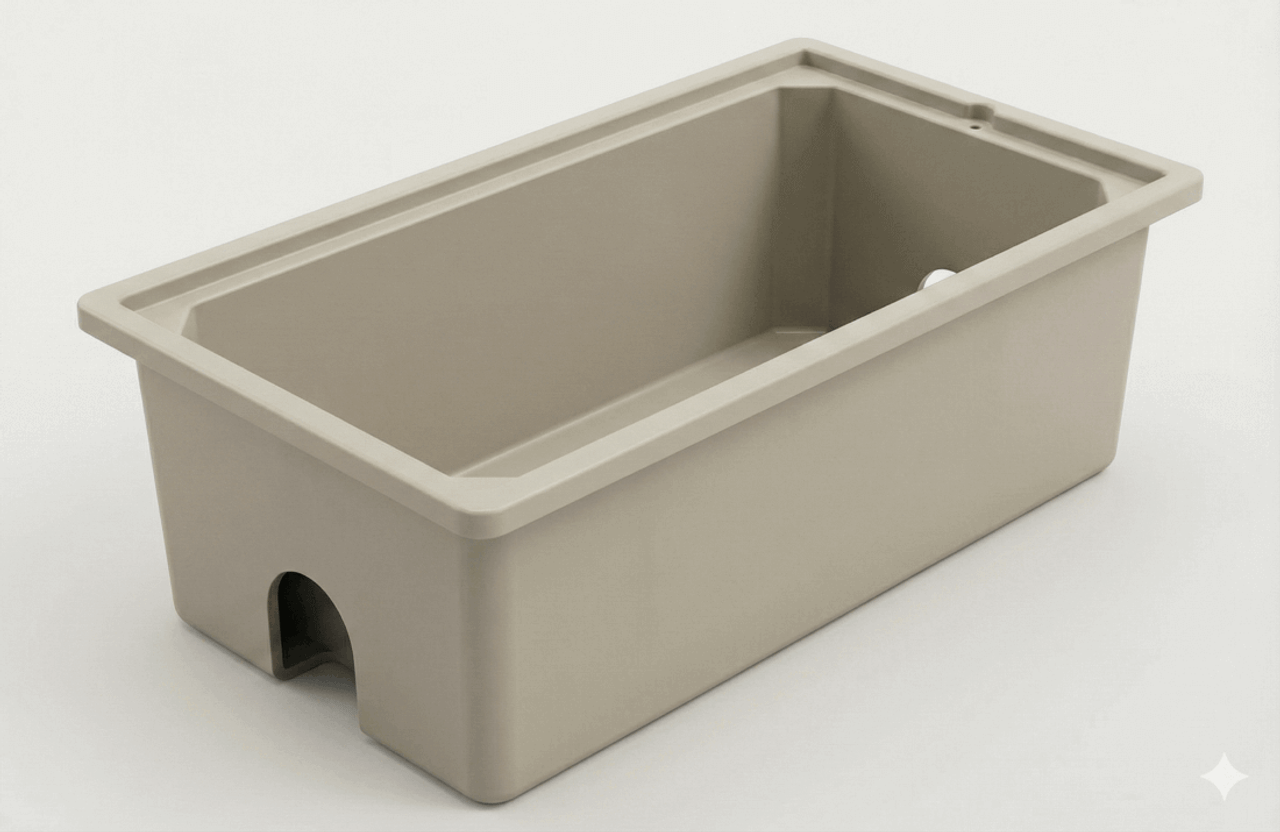

QUAZITE PC1730BA12, PC1730BB12, PC1730BG12, 17" x 30" x 12" Pull Box -ANSI Tier 5
Quazite underground enclosures feature polymer concrete construction that is stronger and lighter weight than regular concrete. Their durability and long installation life make them a cost-effective solution for Communication, C&I, Water, and Underground Utilities projects.
PC1730BA12 Specifications:
| Part Number | PC1730BA12 |
| Mouseholes | No |
| Gasketed | No |
| Load Rating | ANSI Tier 5 * |
| Design/Test Load # | 5,000 / 7,500 |
| Length (in.) | 17" |
| Width (in.) | 30" |
| Depth (in.) | 12" |
| Weight | 58 lbs |

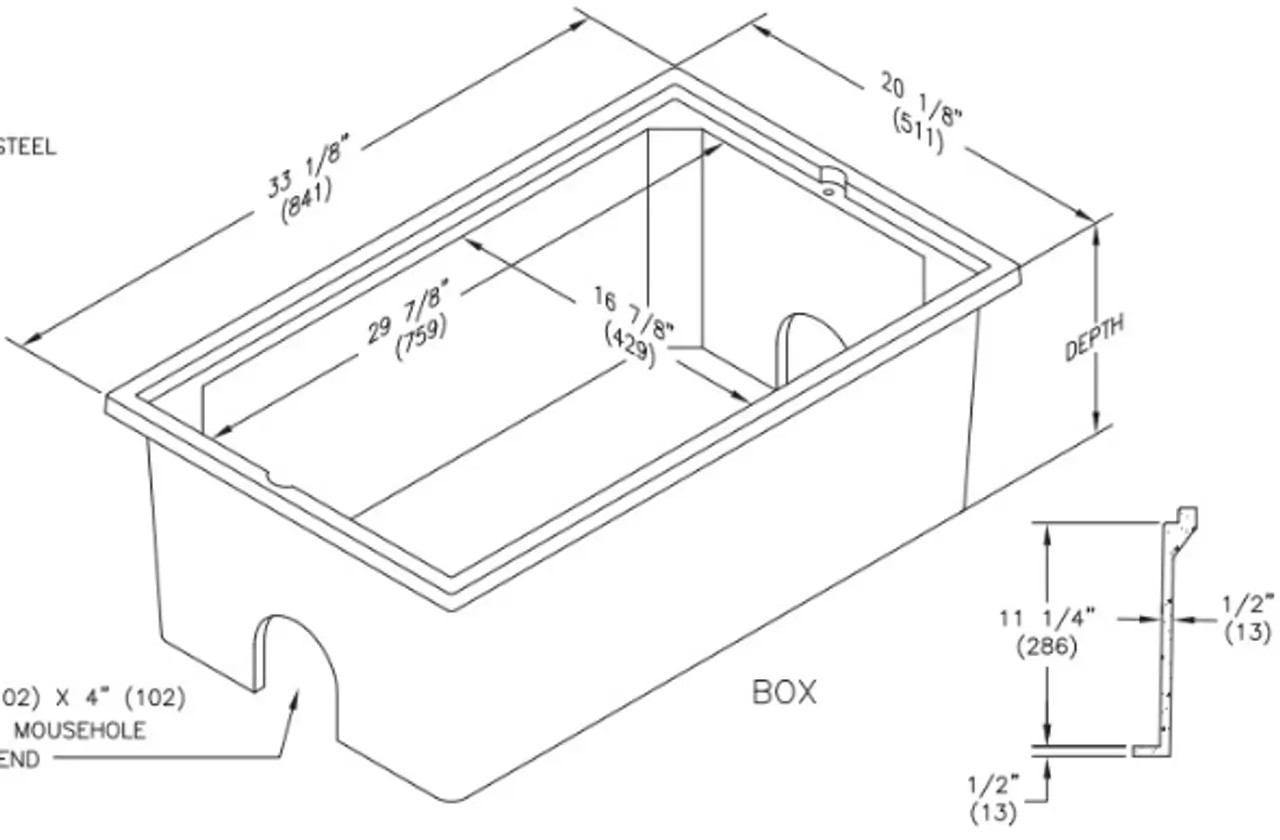

| Drawing | PC1730BA12 Drawing |
PC1730BG12 Specifications:
| Part Number | PC1730BG12 |
| Mouseholes | No |
| Gasketed | Yes |
| Load Rating | ANSI Tier 5 * |
| Design/Test Load # | 5,000 / 7,500 |
| Length (in.) | 17" |
| Width (in.) | 30" |
| Depth (in.) | 12" |
| Weight | 58 lbs |
| Drawing | PC1730BG12 Drawing |
PC1730BB12 Specifications:
| Part Number | PC1730BB12 |
| Mouseholes | Yes |
| Gasketed | No |
| Load Rating | ANSI Tier 5 * |
| Design/Test Load # | 5,000 / 7,500 |
| Length (in.) | 17" |
| Width (in.) | 30" |
| Depth (in.) | 12" |
| Weight | 58 lbs |
| Drawing | PC1730BB12 Drawing |
Enclosure Features:
| Side Type | Straight Wall |
| Base Type | Open Bottom |
| Stackable | Yes |
| UL Certified | Yes |
| Certification | ANSI/SCTE77 |
| Fire/Chemical Resistant | Yes |
| Insulated | No |
| Material | Polymer Concrete |
| Type | Underground Enclosure |
| Manufacturer | Quazite |
Cover Specifications:
PC1730CA00** Standard with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 17" X 30" x 3/4" | 5* | 5,000 / 7,500 | 33 |
PC1730WA00** Lightweight with No Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 17" X 30" x 3/4" | 5* | 5,000 / 7,500 | 33 |
*ANSI TIER Ratings
- ANSI TIER 5 traffic rated for sidewalk applications with a safety factor for occasional non-deliberate vehicular traffic.
- ANSI TIER 8 traffic rated for sidewalk applications with a safety factor for non-deliberate vehicular traffic.
- ANSI TIER 15 traffic rated for driveway, parking lot, and off-roadway applications subject to occasional non-deliberate heavy vehicular traffic.
- ANSI TIER 22 traffic rated for driveway, parking lot, and off-roadway applications subject to occasional non-deliberate heavy vehicular traffic.
