Product Description

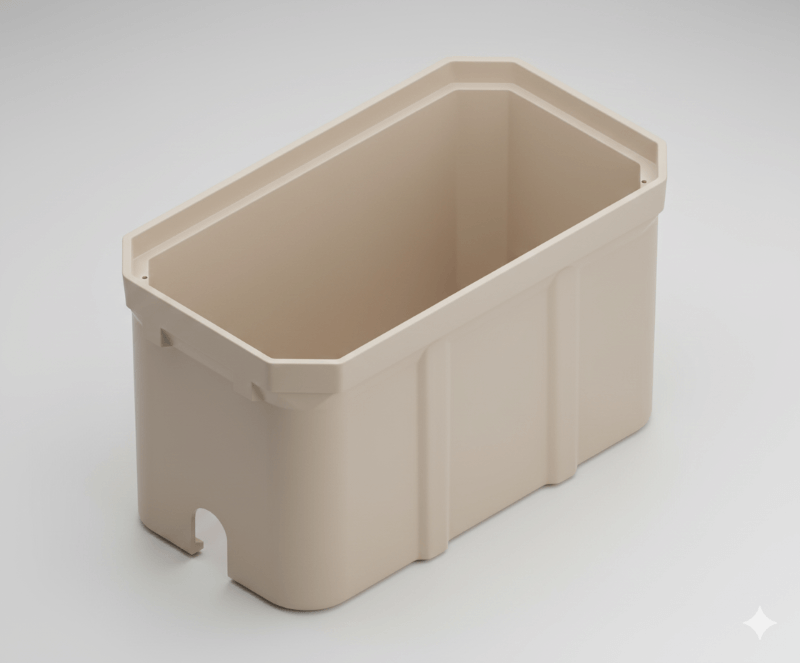

PG3060BA21 (BA/BB) Quazite 30 x 60 x 21 open bottom, straight wall, precast polymer concrete, underground pull box with or without mouseholes.
Quazite enclosure boxes feature polymer concrete construction that is stronger and lighter weight than regular concrete. Their durability and long installation life make them a cost-effective solution for Communication, C&I, Water, and Underground Utilities projects.
PG3060BA21 Specifications:
| Part Number | PG3060BA21 |
| Mouseholes | No |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 36 |
| Length (in.) | 60 |
| Depth (in.) | 21 |
| Weight | 350 lbs |

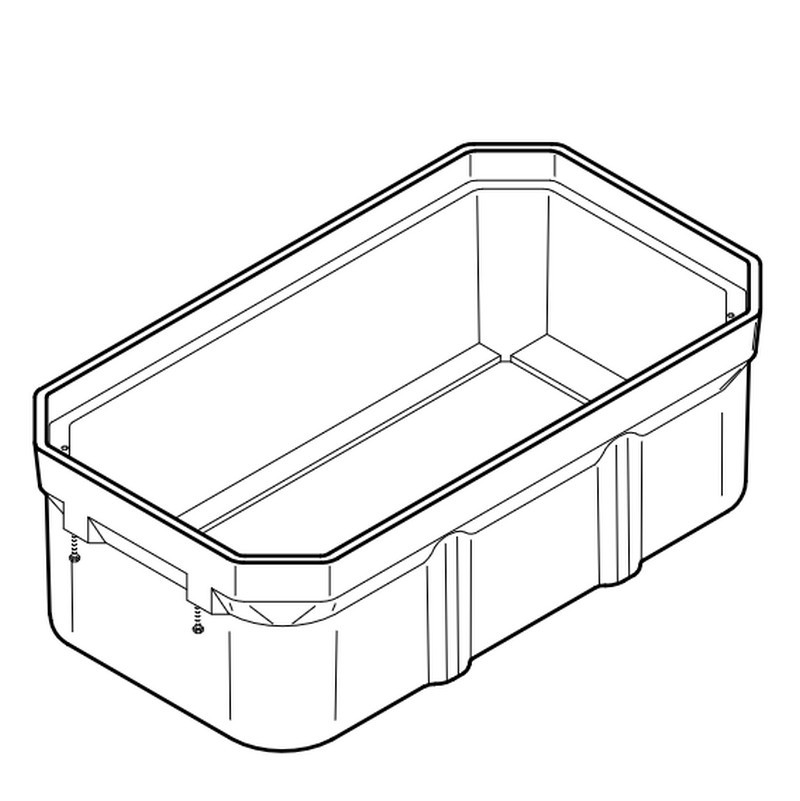

| Drawing | PG3060BA21 Drawing |
PG3060BB21 Specifications:
| Part Number | PG3060BB21 |
| Mouseholes | Yes |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 36 |
| Length (in.) | 60 |
| Depth (in.) | 21 |
| Weight | 350 lbs |
| Drawing | PG3060BB21 Drawing |
Enclosure Features:
| Side Type | Straight Wall |
| Base Type | Open Bottom |
| Stackable | Yes |
| UL Certified | Yes |
| Certification | ANSI/SCTE77 |
| Fire/Chemical Resistant | Yes |
| Insulated | No |
| Material | Polymer Concrete |
| Type | Underground Enclosure |
| Manufacturer | Quazite |
*ANSI TIER 22 traffic rated underground enclosure for driveway, parking lot, and off-roadway applications subject to occasional non-deliberate heavy vehicular traffic.
Cover Specifications:
LG3060CA00** Standard with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 30" X 60" x 3" | 5 | 5,000 / 7,500 | 228 |
PG3660HA00** Heavy Duty with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 30" X 60" x 3" | 15 | 15,000 / 22,500 | 346 |
PG3660HH00** Extra Heavy Duty with 6 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 30" X 60" x 3" | 22 | 22,500 / 33,750 | 368 |
LG3060WA00** Lightweight No Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 30" X 60" x 3" | 5 | 5,000 / 7,500 | 228 |
