Product Description

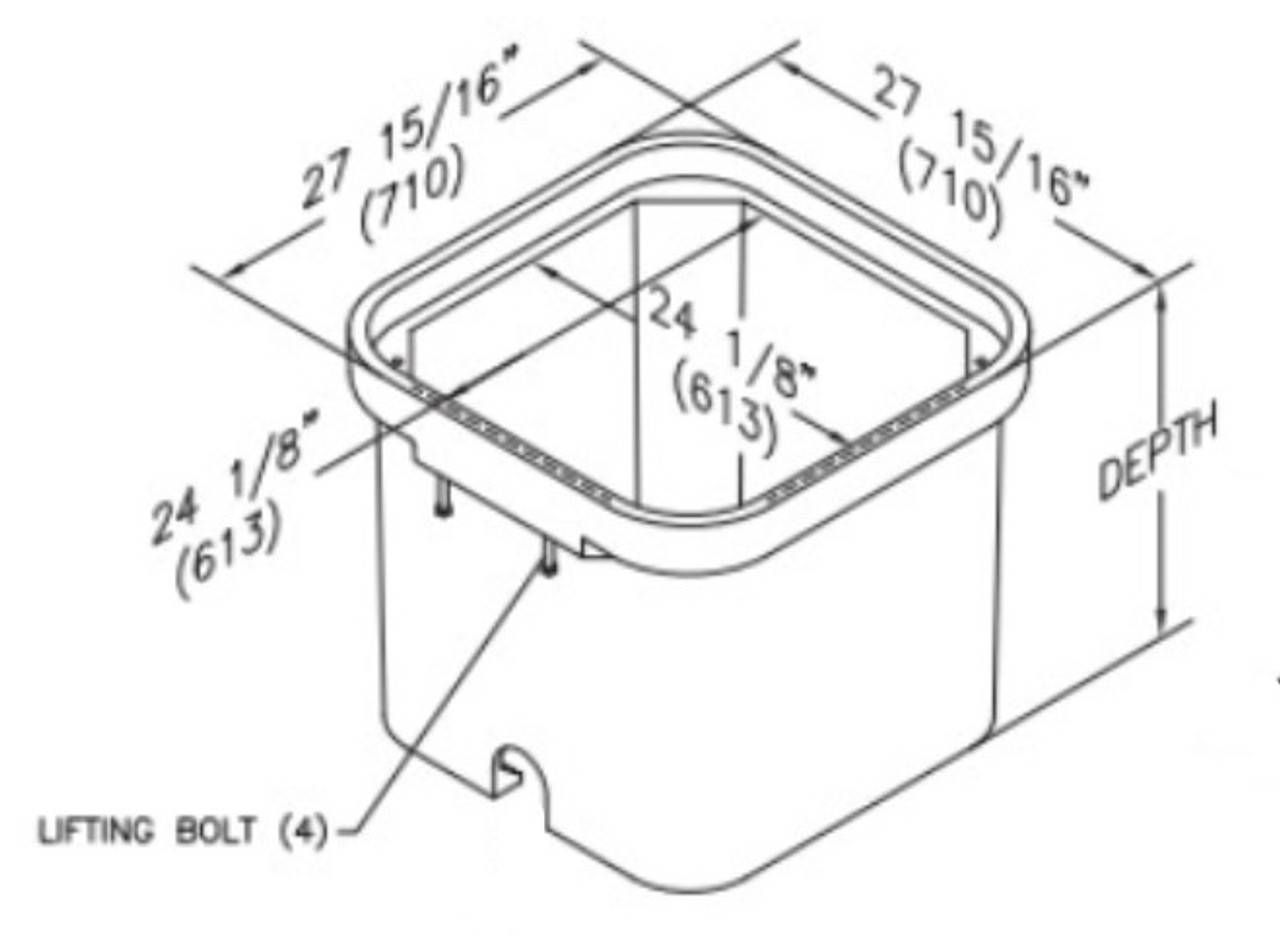

Quazite PG2424BA24, PG2424BB24, PG2424BG24 24" x 24" x 24" Open Bottom, Straight Wall Enclosure
Quazite enclosure boxes feature polymer concrete construction that is stronger and lighter weight than regular concrete. Their durability and long installation life make them a cost-effective solution for Communication, C&I, Water, and Underground Utilities projects.
PG2424BA24 Specifications:
| Part Number | PG2424BA24 |
| Mouseholes | No |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 24 |
| Length (in.) | 24 |
| Depth (in.) | 24 |
| Weight | 165 lbs |
| Drawing | PG2424BA24 Drawing |
PG2424BB24 Specifications:
| Part Number | PG2424BB24 |
| Mouseholes | Yes |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 24 |
| Length (in.) | 24 |
| Depth (in.) | 24 |
| Weight | 165 lbs |
| Drawing | PG2424BB24 Drawing |
PG2424BG24 Specifications:
| Part Number | PG2424BG24 |
| Mouseholes | No |
| Gasketed | Yes |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 24 |
| Length (in.) | 24 |
| Depth (in.) | 24 |
| Weight | 165 lbs |
| Drawing | PG2424BG24 Drawing |
Enclosure Features:
| Side Type | Straight Wall |
| Base Type | Open Bottom |
| Stackable | Yes |
| UL Certified | Yes |
| Certification | ANSI/SCTE77 |
| Fire/Chemical Resistant | Yes |
| Insulated | No |
| Material | Polymer Concrete |
| Type | Underground Enclosure |
| Manufacturer | Quazite |
Cover Specifications:
PG2424CA00** Standard with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 24" x 24" x 2" | 8* | 8,000 / 12,000 | 70 |
PG2424HA00** Heavy Duty with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 24" x 24" x 2" | 15* | 15,000 / 22,500 | 100 |
PG2424HH00** Extra Heavy Duty with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 24" x 24" x 2" | 22* | 22,500 / 33,750 | 100 |
PG2424WA00** Lightweight No Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 24" x 24" x 2" | 8* | 8,000 / 12,000 | 70 |
*ANSI TIER Ratings
- ANSI TIER 5 traffic rated for sidewalk applications with a safety factor for occasional non-deliberate vehicular traffic.
- ANSI TIER 8 traffic rated for sidewalk applications with a safety factor for non-deliberate vehicular traffic.
- ANSI TIER 15 traffic rated for driveway, parking lot, and off-roadway applications subject to occasional non-deliberate heavy vehicular traffic.
- ANSI TIER 22 traffic rated for driveway, parking lot, and off-roadway applications subject to occasional non-deliberate heavy vehicular traffic.
