Product Description

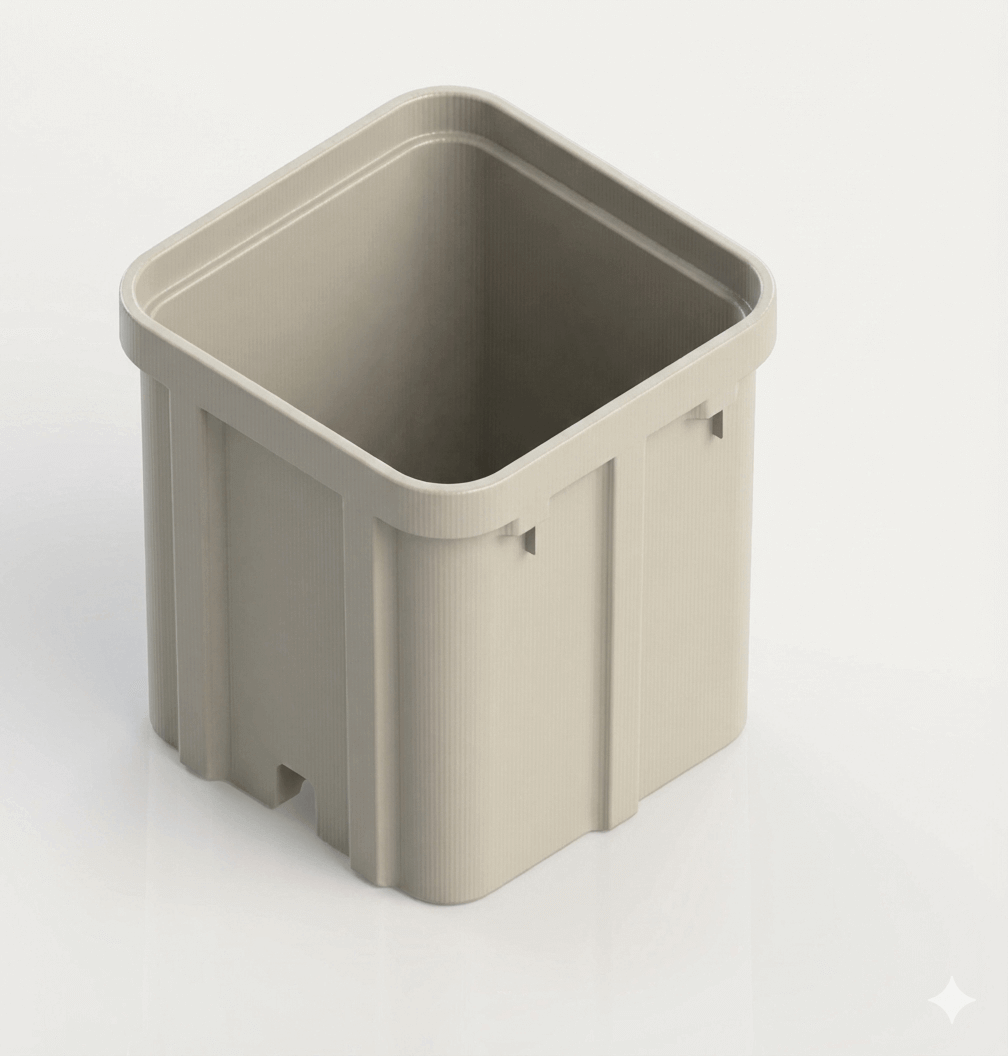

PG3636BA36 (BA/BB/BG) Quazite 36 x 36 x 36 open bottom, straight wall, precast polymer concrete, underground pull box with or without gaskets or mousehole
Quazite enclosure boxes feature polymer concrete construction that is stronger and lighter weight than regular concrete. Their durability and long installation life make them a cost-effective solution for Communication, C&I, Water, and Underground Utilities projects.
PG3636BA36 Specifications:
| Part Number | PG3636BA36 |
| Mouseholes | No |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 36 |
| Length (in.) | 36 |
| Depth (in.) | 36 |
| Weight | 367 lbs |
| Drawing | PG3636BA36 Drawing |
PG3636BB36 Specifications:
| Part Number | PG3636BB36 |
| Mouseholes | Yes |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 36 |
| Length (in.) | 36 |
| Depth (in.) | 36 |
| Weight | 367 lbs |
| Drawing | PG3636BB36 Drawing |
PG3636BG36 Specifications:
| Part Number | PG3636BG36 |
| Mouseholes | No |
| Gasketed | Yes |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 36 |
| Length (in.) | 36 |
| Depth (in.) | 36 |
| Weight | 367 lbs |
| Drawing | PG3636BG36 Drawing |
Enclosure Features:
| Side Type | Straight Wall |
| Base Type | Open Bottom |
| Stackable | Yes |
| UL Certified | Yes |
| Certification | ANSI/SCTE77 |
| Fire/Chemical Resistant | Yes |
| Insulated | No |
| Material | Polymer Concrete |
| Type | Underground Enclosure |
| Manufacturer | Quazite |
*ANSI TIER 22 traffic rated underground enclosure for driveway, parking lot, and off-roadway applications subject to occasional non-deliberate heavy vehicular traffic.
Cover Specifications:
PG3636CA00** Standard with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 36" x 36" x 3" | 8 | 8,000 / 12,000 | 174 |
PG3636HA00** Heavy Duty with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 36" x 36" x 3" | 15 | 15,000 / 22,500 | 220 |
PG3636HH00** Extra Heavy Duty with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 36" x 36" x 3" | 22 | 22,500 / 33,750 | 330 |
PG3636WA00** Lightweight No Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 36" x 36" x 3" | 8 | 8,000 / 12,000 | 174 |
