Product Description

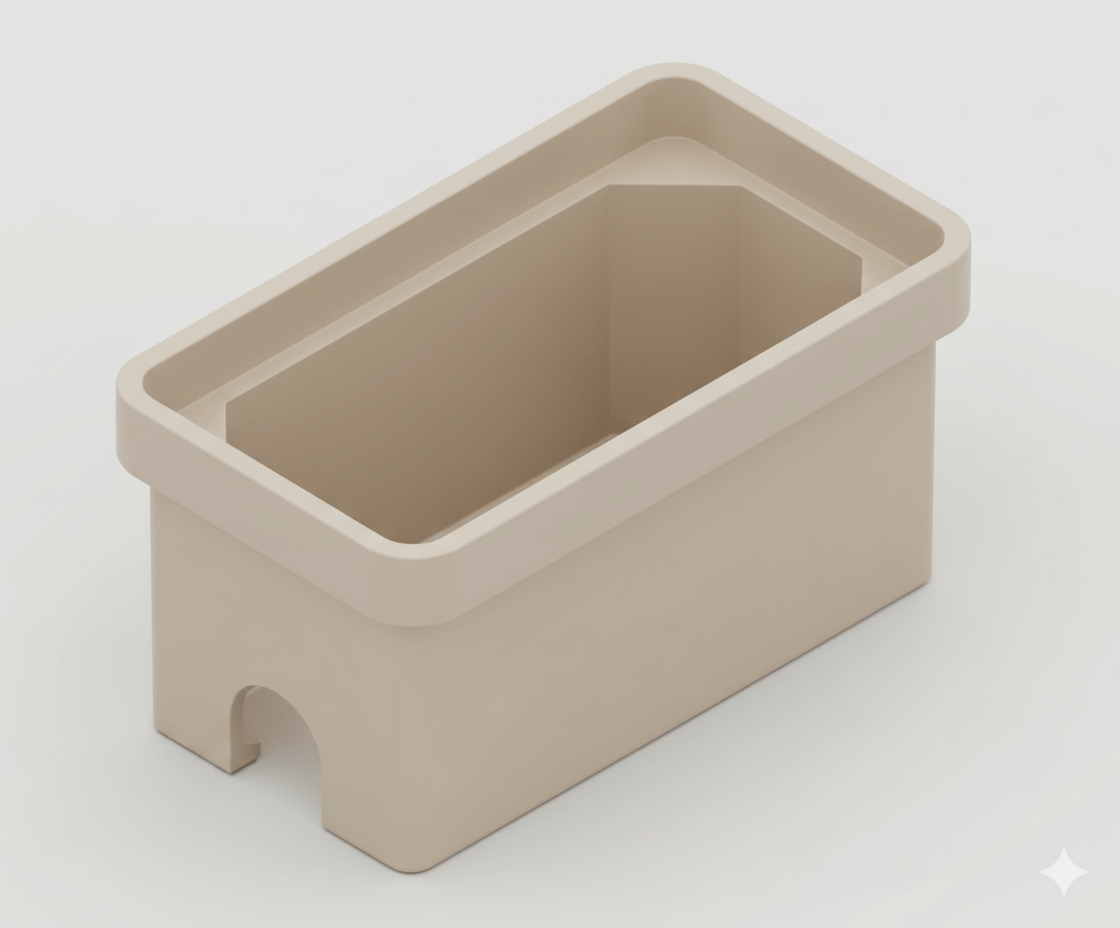

PG1120BA12 (BA/BB/BG) Quazite 11 x 20x 12 open bottom, straight wall, precast polymer concrete, underground pull box with or without gaskets or mouseholes.
Quazite enclosure boxes feature polymer concrete construction that is stronger and lighter weight than regular concrete. Their durability and long installation life make them a cost-effective solution for Communication, C&I, Water, and Underground Utilities projects.
PG1120BA12 Specifications:
| Part Number | PG1120BA12 |
| Mouseholes | No |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 11 |
| Length (in.) | 20 |
| Depth (in.) | 12 |
| Weight | 50 lbs |

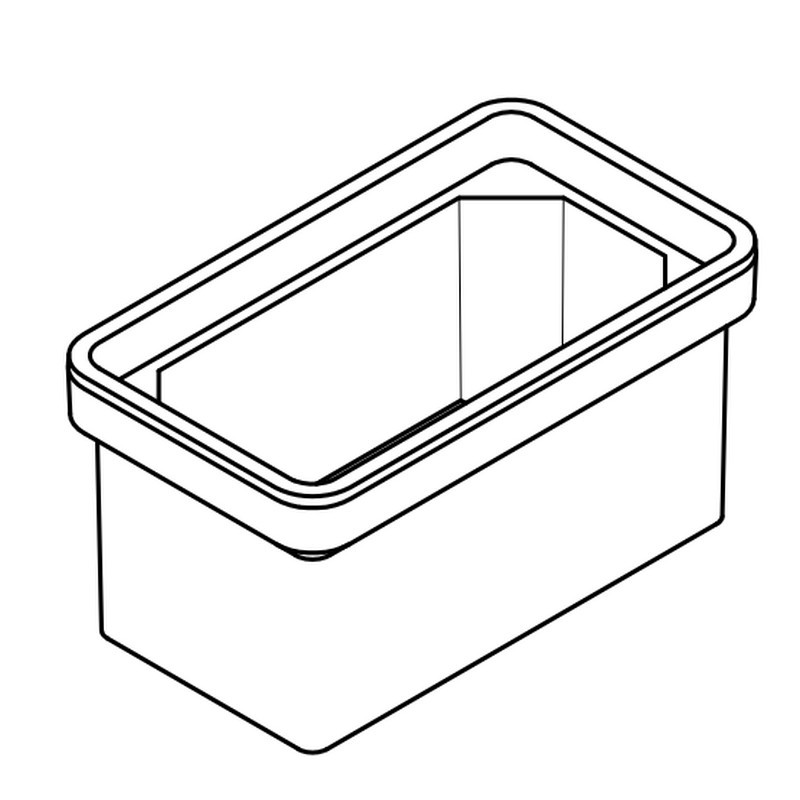

| Drawing | PG1120BA12 Drawing |
PG1120BB12 Specifications:
| Part Number | PG1120BB12 |
| Mouseholes | Yes |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 11 |
| Length (in.) | 20 |
| Depth (in.) | 12 |
| Weight | 50 lbs |
| Drawing | PG1120BB12 Drawing |
PG1120BG12 Specifications:
| Part Number | PG1120BG12 |
| Mouseholes | No |
| Gasketed | Yes |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 11 |
| Length (in.) | 20 |
| Depth (in.) | 12 |
| Weight | 50 lbs |
| Drawing | PG1120BG12 Drawing |
Enclosure Features:
| Side Type | Straight Wall |
| Base Type | Open Bottom |
| Stackable | Yes |
| UL Certified | Yes |
| Certification | ANSI/SCTE77 |
| Fire/Chemical Resistant | Yes |
| Insulated | No |
| Material | Polymer Concrete |
| Type | Underground Enclosure |
| Manufacturer | Quazite |
*ANSI TIER 22 traffic rated underground enclosure for driveway, parking lot, and off-roadway applications subject to occasional non-deliberate heavy vehicular traffic.
Cover Specifications:
PG1120CA00** Standard with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 11" X 20" x 2" | 8 | 8,000 / 12,000 | 28 |
PG1120HA00** Heavy Duty with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 11" X 20" x 2" | 15 | 15,000 / 22,500 | 38 |
PG1120HH00** Extra Heavy Duty with 6 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 11" X 20" x 2" | 22 | 22,500 / 33,750 | 38 |
PG1120WA00** Lightweight No Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 11" X 20" x 2" | 8 | 8,000 / 12,000 | 28 |
