Product Description

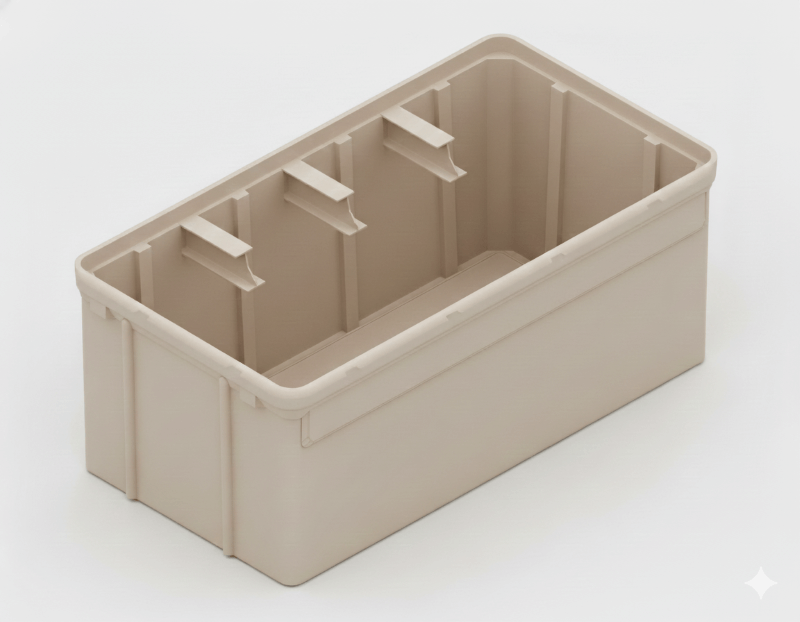

PG4896BA Quazite 48 x 96 X 48 Hand Hole - Tier 22
Part Numbers: PG4896BA48
- Open Bottom
- Precast Polymer Concrete Pull Box
- ANSI TIER 22 Traffic Rated for driveway, parking lot, and off-roadway applications subject to occasional non-deliberate heavy vehicular traffic.
QUAZITE® boxes (handholes / vaults / enclosures) are known for their structural integrity and long installation life. QUAZITE® boxes feature straight, sturdy sidewalls that transfer loads from cover forces down into the ground below the enclosure. End-users can be assured that QUAZITE® enclosures meet or exceed ANSI’s national Standards.
Enclosures:
DESCRIPTION | DEPTH | TIER | DESIGN / TEST LOAD # | WEIGHT # | PART NO. |
---|---|---|---|---|---|
Standard Open Bottom | 48” | 22 | 22,500 / 33,750 | 1384 | PG4896BA48 |
Covers:
DESCRIPTION | TIER | DESIGN / TEST LOAD # | WEIGHT # | PART NO. |
---|---|---|---|---|
Lightweight 8 Bolts | 5 | 5,000 / 7,500 | 608 | LG4896CA00** |
W/ 8 Bolts | 15 | 15,000 / 22,500 | 794 | PG4896HA00** |
W/ 8 Bolts | 22 | 22,500 / 33,750 | 1186 | PG4896HH00** |
Lightweight No bolts | 5 | 5,000 / 7,500 | 608 | LG4896WA00** |
* Loadings comply with ANSI/SCTE 77
** Request a quote or call us at 800-767-1576 for more information.
