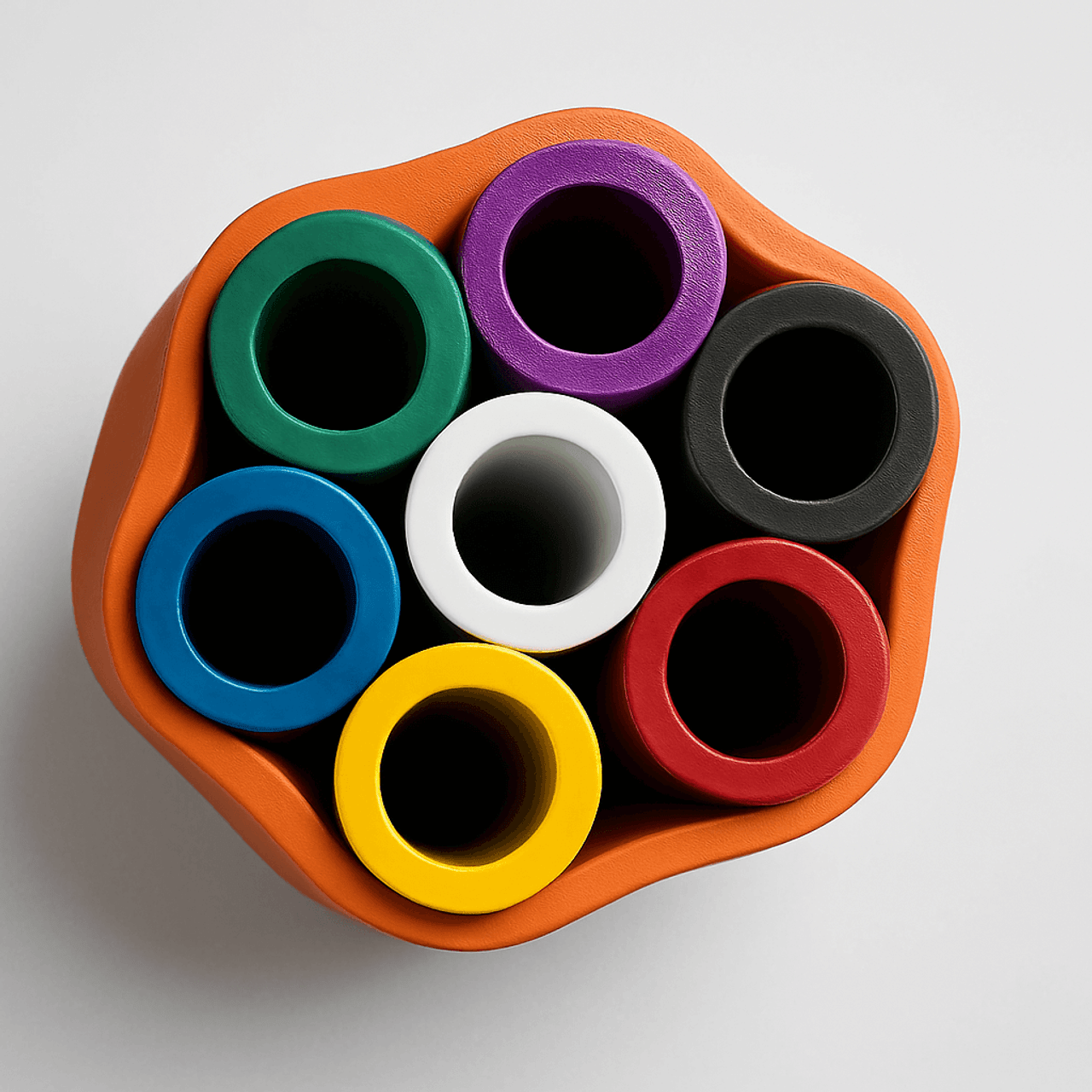

Blue Diamond HDPE Microduct

Product Description

Blue Diamond offers several configurations of HDPE microduct that allow runs from node to customer without splices. Run a single microtrench and have empty ducts available for future connections. Ideal for FTTH, 5G Wireless, High Speed Business Campus applications.

Details:

• Configurations: single tube, 2-way, 3-way, 4-way, 7-way
• Available colors: white, black, blue, green, red, orange, lilac, grey, yellow, brown, buff, terra cotta
• Wall: regular or heavy duty

Single Tube Configurations

Size	Nominal OD	Weight (lbs/ft)	Bend Radius (in)
12/10mm	12	0.022	9
12.7/10mm	12.7	0.030	10
14/10mm	14	0.048	11
16/13mm	16	0.043	13
16/12mm	16	0.056	13
18/14mm	18	0.064	14

Multi-Tube Configurations

Microduct Size (mm)	Configuration OD (in) Width/Height	Oversheath Wall Regular/Heavy (in)	Package Weight lbs/ft	Bend Radius Unsupported* (in) Y Axis/X Axis	Safe Pull** (lbs)
22/16	1.93/1.06	0.07/0.10	0.395	17/37	1220
18/14	1.62/0.91	0.07/0.10	0.265	14/31	817
16/13	1.46/0.83	0.07/0.10	0.209	13/28	645
16/12	1.46/0.83	0.07/0.10	0.235	13/28	724
14/10	1.30/0.75	0.07/0.10	0.204	11/25	630
12.7/10	1.20/0.70	0.07/0.10	0.160	10/23	492
10/8	0.99/0.59	0.07/0.10	0.115	8/19	354
