Product Description

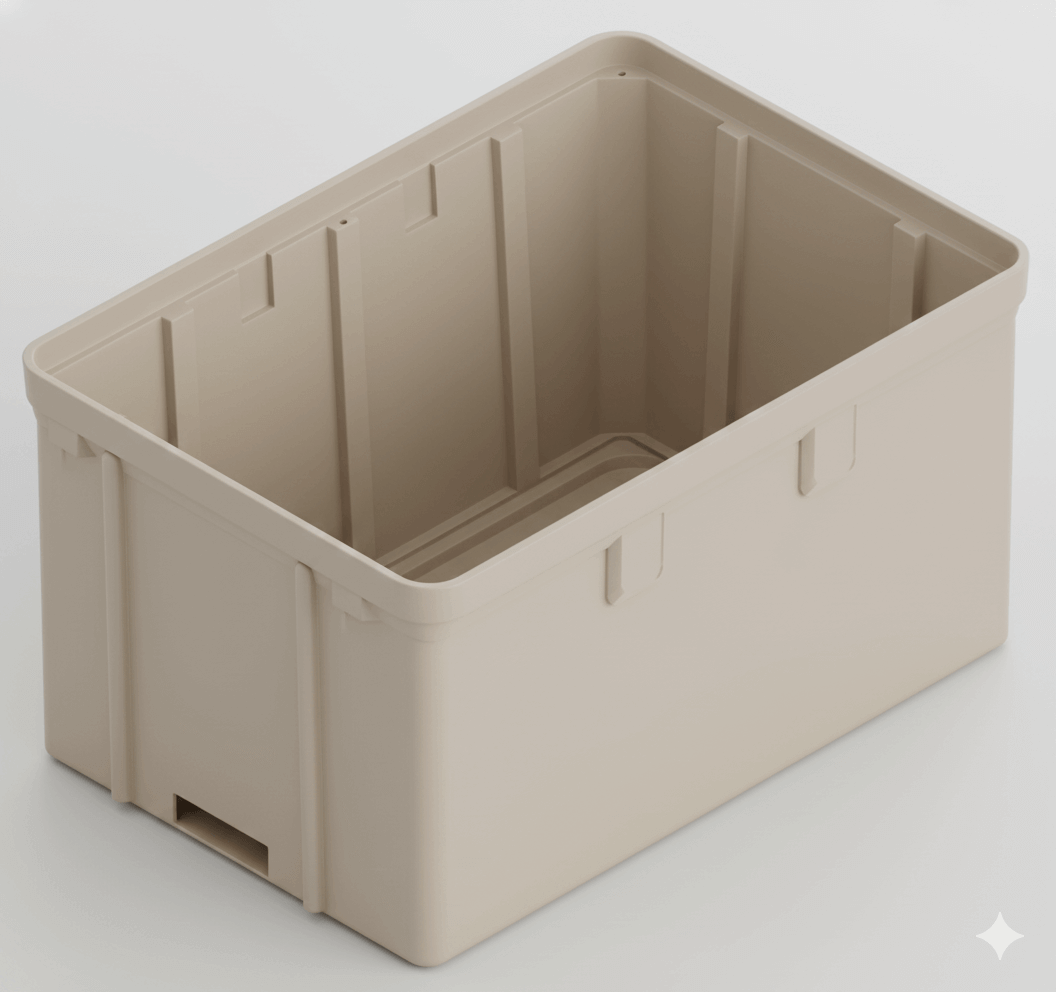

Quazite PG3672BA** 36" x 72" Open Bottom, Straight Wall Enclosure
Quazite enclosure boxes feature polymer concrete construction that is stronger and lighter weight than regular concrete. Their durability and long installation life make them a cost-effective solution for Communication, C&I, Water, and Underground Utilities projects.
PG3672BA21 Specifications:
| Part Number | PG3672BA21 |
| Mouseholes | No |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 36 |
| Length (in.) | 72 |
| Depth (in.) | 21 |
| Weight | 448 lbs |
| Drawing | PG3672BA21 Drawing |
PG3672BA36 Specifications:
| Part Number | PG3672BA36 |
| Mouseholes | No |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height | 36 |
| Length | 72 |
| Depth | 36 |
| Weight | 768 lbs |
| Drawing | PG3672BA36 Drawing |
PG3672BB21 Specifications:
| Part Number | PG3672BB21 |
| Mouseholes | Yes |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 36 |
| Length (in.) | 72 |
| Depth (in.) | 21 |
| Weight | 448 lbs |
| Drawing | PG3672BB21 Drawing |
PG3672BB36 Specifications:
| Part Number | PG3672BB36 |
| Mouseholes | Yes |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height | 36 |
| Length | 72 |
| Depth | 36 |
| Weight | 768 lbs |
| Drawing | PG3672BB36 Drawing |
Enclosure Features:
| Side Type | Straight Wall |
| Base Type | Open Bottom |
| Stackable | Yes |
| UL Certified | Yes |
| Certification | ANSI/SCTE77 |
| Fire/Chemical Resistant | Yes |
| Insulated | No |
| Material | Polymer Concrete |
| Type | Underground Enclosure |
| Manufacturer | Quazite |
*ANSI TIER 22 traffic rated underground enclosure for driveway, parking lot, and off-roadway applications subject to occasional non-deliberate heavy vehicular traffic.
Cover Specifications:
LG3672CA00** Standard with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 36" x 72" x 3" | 5 | 5,000 / 7,500 | 310 |
PG3672HA00** Heavy Duty with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 36" x 72" x 3" | 15 | 15,000 / 22,500 | 488 |
PG3672HH00** Extra Heavy Duty with 6 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 36" x 72" x 3" | 22 | 22,500 / 33,750 | 544 |
LG3672WA00** Lightweight No Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 36" x 72" x 3" | 5 | 5,000 / 7,500 | 310 |
