Product Description

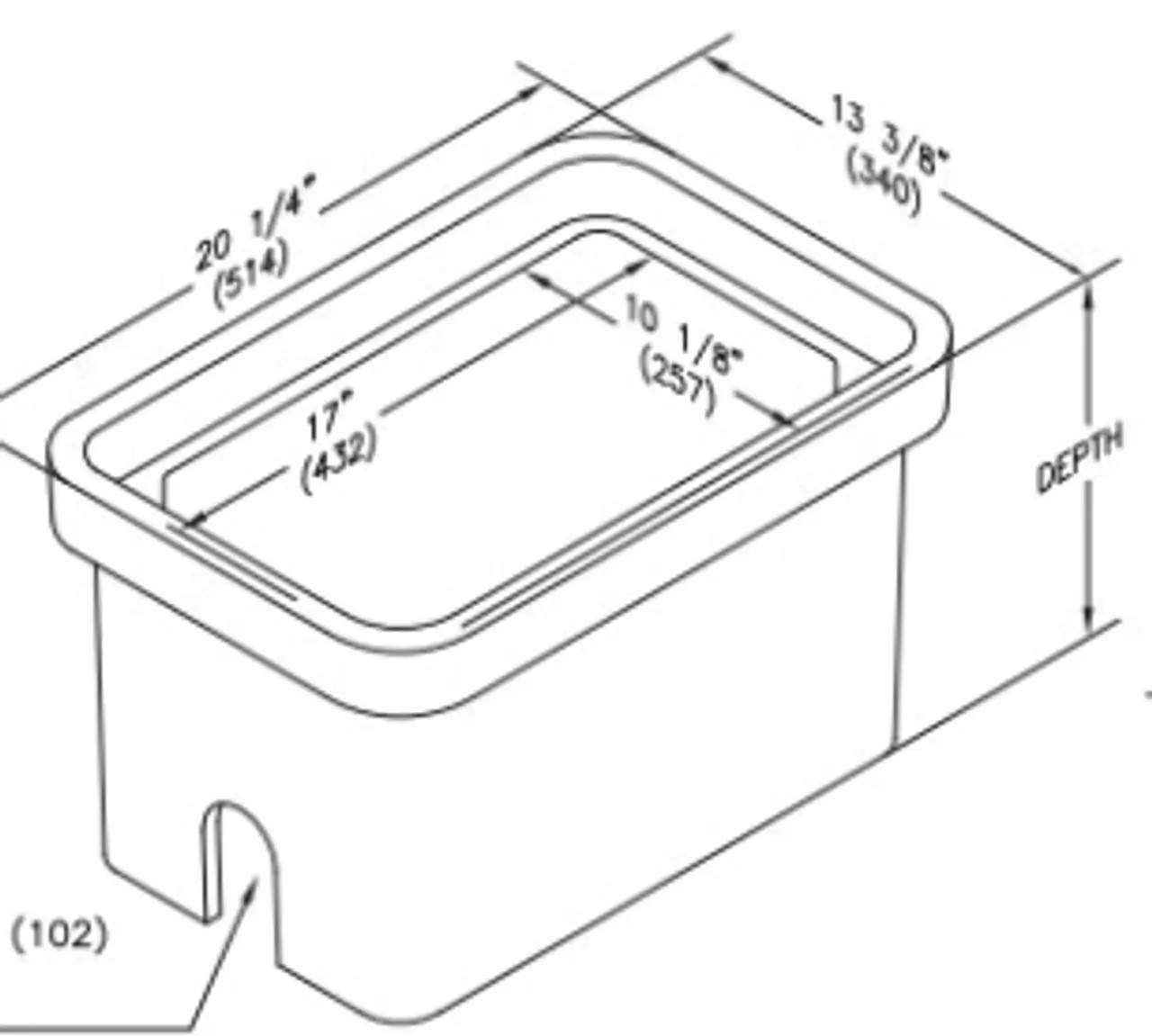

Quazite 11" X 18" PG1118BA**, PG1118BB**, PG1118BG** Open Bottom, Straight Wall Enclosure
Quazite enclosure boxes feature polymer concrete construction that is stronger and lighter weight than regular concrete. Their durability and long installation life make them a cost-effective solution for Communication, C&I, Water, and Underground Utilities projects.
PG1118BA12 Specifications:
| Part Number | PG1118BA12 |
| Mouseholes | No |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 11 |
| Length (in.) | 18 |
| Depth (in.) | 12 |
| Weight | 40 lbs |
| Drawing | PG1118BA12 Drawing |
PG1118BA18 Specifications:
| Part Number | PG1118BA18 |
| Mouseholes | No |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height | 11 |
| Length | 18 |
| Depth | 18 |
| Weight | 53 lbs |
| Drawing | PG1118BA18 Drawing |
PG1118BB12 Specifications:
| Part Number | PG1118BB12 |
| Mouseholes | Yes |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 11 |
| Length (in.) | 18 |
| Depth (in.) | 12 |
| Weight | 40 lbs |
| Drawing | PG1118BB12 Drawing |
PG1118BB18 Specifications:
| Part Number | PG1118BB18 |
| Mouseholes | Yes |
| Gasketed | No |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height | 11 |
| Length | 18 |
| Depth | 18 |
| Weight | 53 lbs |
| Drawing | PG1118BB18 Drawing |
PG1118BG12 Specifications:
| Part Number | PG1118BG12 |
| Mouseholes | No |
| Gasketed | Yes |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height (in.) | 11 |
| Length (in.) | 18 |
| Depth (in.) | 12 |
| Weight | 40 lbs |
| Drawing | PG1118BG12 Drawing |
PG1118BG18 Specifications:
| Part Number | PG1118BG18 |
| Mouseholes | No |
| Gasketed | Yes |
| Load Rating | ANSI Tier 22 * |
| Design/Test Load # | 22,500 / 33,750 |
| Height | 11 |
| Length | 18 |
| Depth | 18 |
| Weight | 53 lbs |
| Drawing | PG1118BG18 Drawing |
Enclosure Features:
| Side Type | Straight Wall |
| Base Type | Open Bottom |
| Stackable | Yes |
| UL Certified | Yes |
| Certification | ANSI/SCTE77 |
| Fire/Chemical Resistant | Yes |
| Insulated | No |
| Material | Polymer Concrete |
| Type | Underground Enclosure |
| Manufacturer | Quazite |
*ANSI TIER 22 traffic rated underground enclosure for driveway, parking lot, and off-roadway applications subject to occasional non-deliberate heavy vehicular traffic.
Cover Specifications:
PG1118CA00** Standard with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 11" X 18" x 2" | 8 | 8,000 / 12,000 | 27 |
PG1118HA00** Heavy Duty with 2 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 11" X 18" x 2" | 15 | 15,000 / 22,500 | 27 |
PG1118HH00** Extra Heavy Duty with 6 Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 11" X 18" x 2" | 22 | 22,500 / 33,750 | 27 |
PG1118WA00*** Lightweight No Bolts
| Dimensions | ANSI TIER | DESIGN / TEST LOAD # | WEIGHT # |
|---|---|---|---|
| 11" X 18" x 2" | 8 | 8,000 / 12,000 | 27 |
